BLO-Line®
Safe fire protection for digital displays: Certified according to A1*
Exclusively at FORTEC Integrated: Reliable solutions for preventative fire protection. Technical faults are frequently the cause of fires. The combination of heat, oxygen and flammable materials promotes the development of fire.
FORTEC Integrated monitors heat generation, minimises flammable components and prevents the supply of oxygen to the monitor – specifically for our BLO-Line®.
Independent testing by an engineering laboratory confirms: FORTEC monitors meet the requirements of the highest fire protection class A1. In the event of a fire, our BLO-Line monitors do not produce smoke gases and do not add to the fire load – their characteristics are therefore comparable to building materials such as concrete, steel and brick. The devices comply with the specifications of VdS 6024.
For this reason, the BLO-Line ® is ideally suited for public buildings as well as for use in escape and rescue routes with increased fire protection requirements. Unlike other manufacturers, the BLO-Line ® provides this protection without a bulky and heavy fire protection enclosure and can therefore be elegantly integrated into existing architectural concepts.
For additional safety, the BLO-Line ® can optionally be equipped with an extinguishing cartridge that actively cools the device in the event of a fire. The series is also flexibly configurable with a PCAP touchscreen, IoT module or panel PC and is compatible with all our software options . The BLO-Line is also optionally available with a barcode scanner.
The monitors are available in screen sizes from 24" to 65" . For detailed information on fire protection, please click here.
Impressive fire test
Pictures say more than a thousand words. Watch our second short film "Silver Man" and convince yourself of the performance of our according to A1 certified monitors.
Robust complete solutions are just one of our many competences - just contact us.
Features at a glance
- designed for 24/7 operation
suitable for escape routes
fire protection glass optionally with touch screen
No emission of smoke gas and contribution to the fire load
With certificate according to fire protection class A1
optionally barcode scanner and extinguishing cartridge

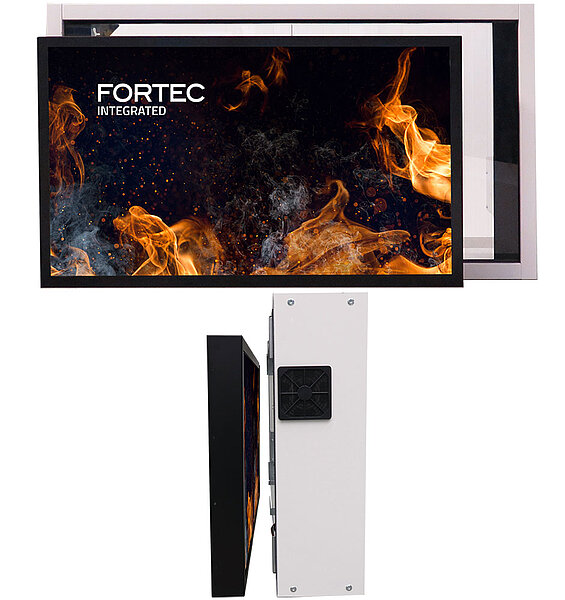

A1 - Without additional housing
Our BLO-Line® complies the requirement according to fire protection class A1 without an external enclosure, thus enabling a slim design.
Commercially available fire protection enclosures alone weigh more than our BLO-Line® monitors. The traditional combination adds a wall mount and a standard monitor. With our solution, you get everything in one space-saving and easy-to-mount product.
The installation of the BLO-Line® is done in four simple steps: Mount the wall bracket, hook in the device, connect the cable and mount the monitor. The installation of fire protection enclosures is much more complicated. With our series it is also possible to integrate a PCAP touch; this is not possible with the enclosure.
For more details please refer to our flyer.

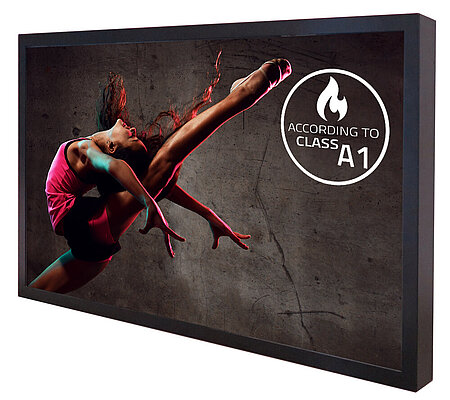

BLO-Line® 4K
Brilliant with certainty
For higher demands, we have BLO-Line® with 4K/ UHD panels. With these new panels, the information on the monitors will be even more eye-catching for passers-by and customers, high brilliance and clarity of the display is combined here with the highest security. In addition, the series can be configured with PCAP touchscreen, IoT module or integrated PC and is compatible with all FORTEC software options.
Info Webinar
To view this YouTube video, permission is required in the Advertising section.
* The fire behavior (flammability and combustibility) of the monitors, was determined following the SBI method according to EN13823:2015-02 and EN13823-2020-09 for building materials. Heat and smoke development are evaluated, as well as burning dripping. The fire test was carried out in accordance with the European standard DIN EN13501-1.
