Artista-IoT Starter Kit
To view this YouTube video, permission is required in the Advertising section.
Here you can see a video of the Artista-IoT Starter Kit by our American sister company Apollo Displays.
TFT Controller for the IIoT
Artista - Intelligent Networking of Devices
The term Industrial Internet of Things (IIoT) stand for the growing trend to equip products with their own intelligence to take some of the weight off the user's shoulders.
The Artista controller boards with the latest Raspberry Pi Compute Modules CM3+, CM4S, CM4 and CM5 are the perfect basis for cost-effective IIoT applications such as:
- SmartGrid (Monitoring and control of vending machines)
- Gateway to Middleware
- Facility management (Data acquisition and monitoring of e.g. temperature, sensors, access control etc.)
Please contact us; We are happy to help!

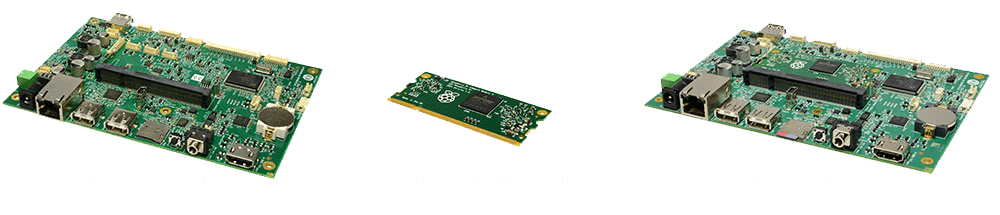

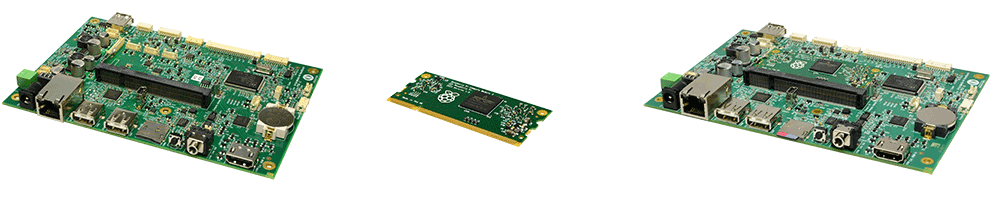

The Artista controllers consist of an ArtistaMEDIA Baseboard and a Raspberry Pi Compute Module and can be easily adapted to the specific requirements of your application.
Voice of a customer:
"My tests with the Artista-IoT are very conclusive, it's an amazing product !!"
Bring your product to the Internet of things!
The important facts at a glance:
- Top = -20 to +80°C
- Up to UHD resolution
- Based on Bookworm (Debian 12)
- Special functions like DICOM pre-set, gamma correction, color calibration possible
- integrated eMMC Flash saves the need of additional storage
- WiFi/Bluetooth via dongle or on board with CM3+ / CM4S / CM4 / CM5 module
- Real-time clock
- USB, GPIO, I²C, UART
- Auto-start-up at power on
- Long-term availability: min. 6 years
- Customized solutions can be implemented quickly on a project basis
- Raspberry Pi ensures the broad support of a large developer community
- Linux-based distribution with open source Yocto also available on request
Artista Versions in comparison
Artista-IoT
- Baseboard ArtistaMEDIA-IIIB
- with Raspberry Pi Compute Module CM3+/CM4S (8, 16 or 32GB)
- up to 1GB(CM3+), respectively 8GB (CM4S) on board RAM
- for LVDS TFT displays up to full HD resolution (1920x1200)
- 100Mbit/s Ethernet
- HDMI 1.3 (compatible with HDMI 1.4)
- Wide range power input from 12V to 28V DC
- Option: USB Wi-Fi dongle
Artista-M4
- Baseboard ArtistaMEDIA-IV
- with Raspberry Pi Compute Module CM4 oder CM5
- CM4: 64-bit quad-core ARM Cortex-A72 processor @1.5GHz, up to 8GB RAM (LPDDR4)
- CM5: 64-bit quad-core ARM Cortex-A76 processor @2.5GHz, up to 16GB RAM (LPDDR4)
- for V-by-One TFT displays up to 4K resolution (3840x2160)
- 4K eDP version (coming soon in Q1/2026)
- 1GB Ethernet, supports IEEE1588
- 1x HDMI 2.0 Input (only for VBO variant)
- 1x HDMI 2.0 Output
- Up to 4Kp60 dual HDMI
- Vcc 24V
- M.2 B Key interface e.g. for connecting wireless modules
- Camera interface available (only with CM4)
- Options: dualband Wi-Fi 5, Bluetooth 5.0, internal or external antenna
- CAN bus via add-on I/O board
- Lite module enabling external SD card boot functionality
Software-Options for Artista
Various operating systems and specially adapted software options support you in making the best use of the Artista for your project:
Accessories
Artista-IO Board (our SAP no. AR-01-100)
IF406 IR Sensor (our SAP no.ZU-02-406)
IR Remote Control (our SAP no. RC-10-007)
IF440 Light Sensor (our SAP no. ZU-02-509)
IF389 Temperature Sensor (our SAP no. ZU-02-389)
IF398 OSD Keypad (our SAP no. ZU-02-398)
(KI-53-000)
The Artista-IoT starter kit helps developers implement a project quickly and easily. Thanks to pre-installed Raspberry Pi, the support of the huge community can be used.
The Kit consists of:
- 10.1" TFT display with
- 500cd/m² brightness
- Integrated backlight converter
- Wide viewing angle of U/ D/ L/ R 85°/ 85°/ 85° /85°
- Operating temperature range from -20 to +70°C
- Multi-touch PCAP touch screen
- Artista-IoT with integrated Raspberry Pi Compute Module CM3+
- Pre-installed Raspbian
- Connection cable
