IB96W
3.5" SBC | Raptor Lake-P

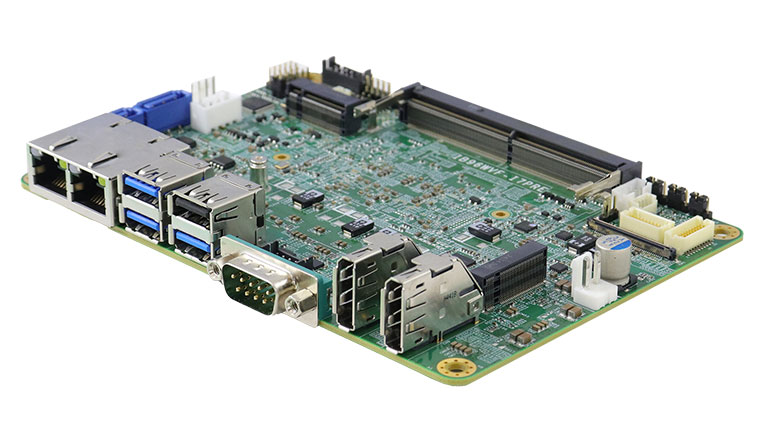

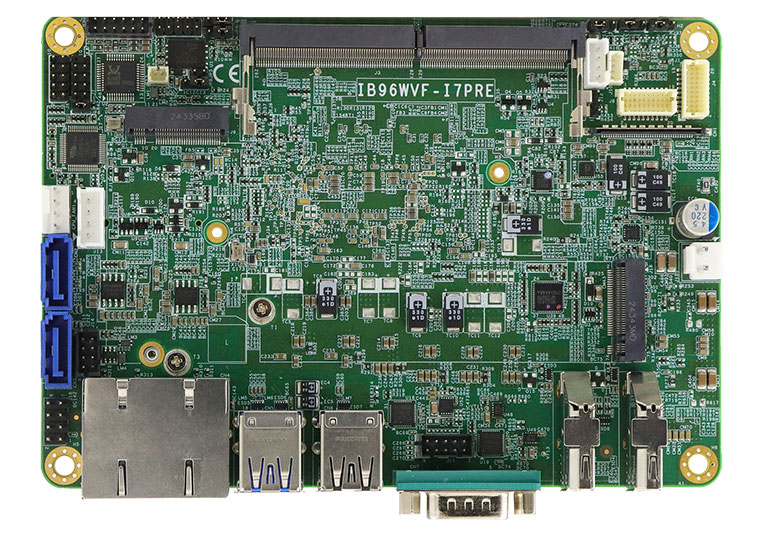

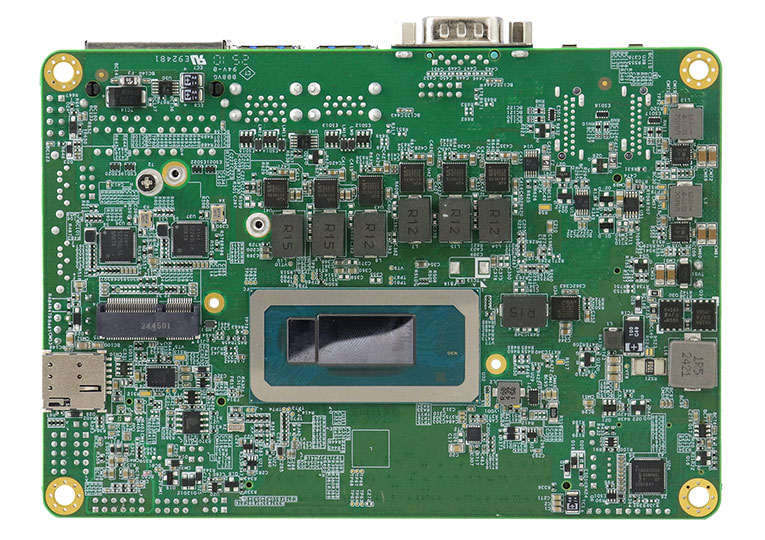

The IB96W is an iBASE 3.5" Single Board Computer with 13th Gen Raptor Lake-P Processor. Intel® Core™ Mobile with wide temperature range
Features:
- 1x DDR5 SO-DIMM, up to 32GB, supports IBECC
- supports 2x DP++, LVDS, and eDP
- 2x Intel® I226IT PCIe 2.5G LAN
- 3x USB 2.0, 3x USB 3.2, 2x COM, 2x SATA III
- 3x M.2 slots (M-Key + E-Key + B-Key)
- supports digital I/O (4-in/4-out), fTPM, and watchdog timer
Ordering information:
IB96WVF-I7PRE | Intel® Core™ i7-1370PRE
HSIB96W-A | Heatsink with fan for IB96W
HSIB96W-1 | Heat spreader for IB96W
IB76A-2 | Cable kit w/USB, COM, Power, SATA + Power
Technical Data
Manufacturer
iBase
Product Series
Single Board Computer
Product Category
3,5" Compact SBCs
CPU Type
Intel® Core™ i
CPU
i7-1370PRE
Chipset
F81804U-I
Memory
max. 32GB DDR5 SO-DIMM
TPM
fTPM
Temperature Range Top
-40...+75°C
Temperature Range Tst
-45...+80°C
Interfaces
eDP
LVDS
USB 2.0
DisplayPort
COM
SATA
USB 3.2
M.2
2.5 GbE
Power Supply
+24V
Dimensions (LxWxD)
102 x 147 mm
