AIMB-2210
Mini-ITX | Ryzen® Embedded 8000 Series

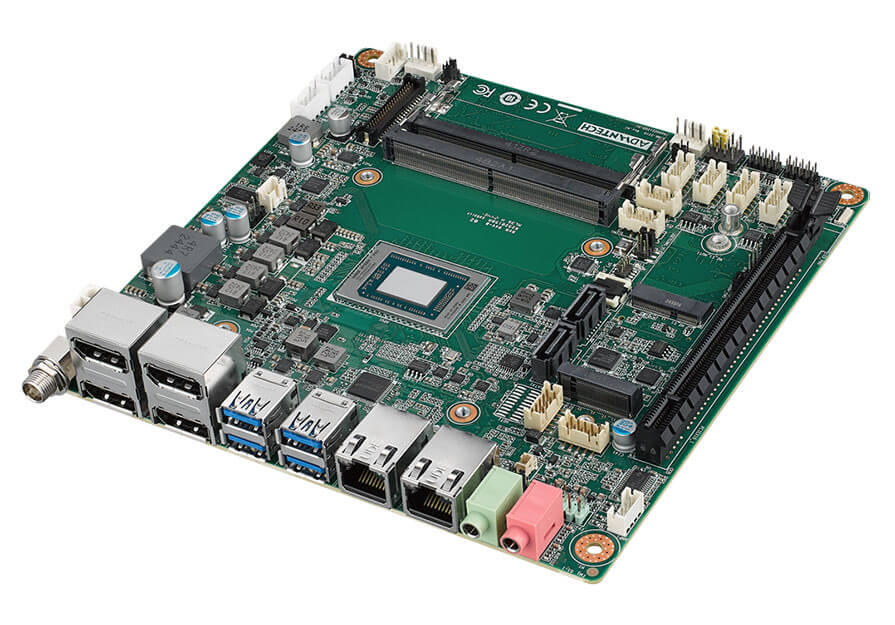

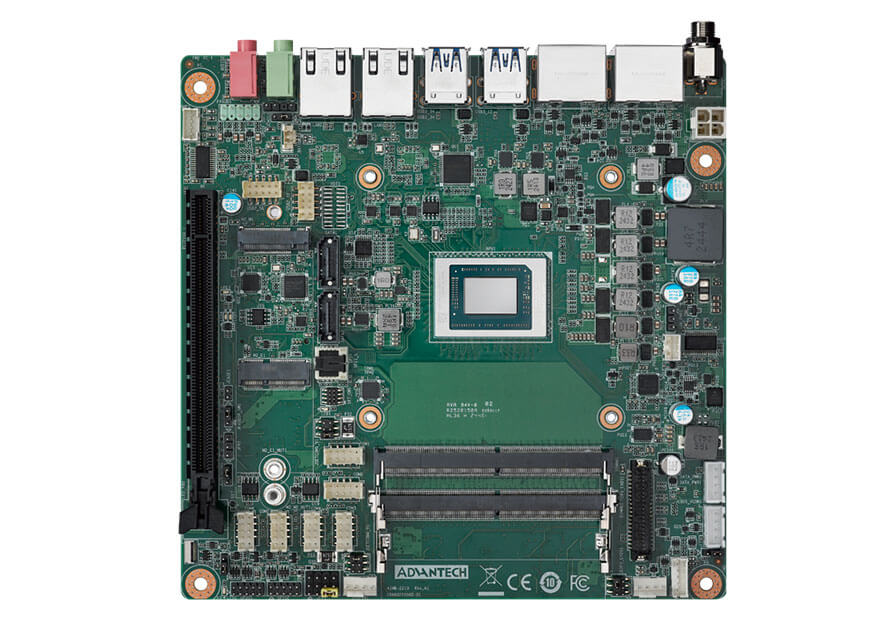

The compact mini-ITX™ board AIMB-2210 from Advantech with AMD Ryzen™ Embedded 8000 series processors and a wide input voltage range can control up to 4 TFT displays simultaneously via 4xDP or 3x DP and LVDS/eDP
Features:
- Up to 96GB DDR5 5600MT/s with two SO-DIMM
- Four independent display with 4 DP or 3 DP + 1 LVDS(or eDP)
- 3 M.2 expansion slots, 6 COM, 4 USB 3.2 Gen2x1, 4 USB 2.0 and 1 PCIe x8 Gen4
- Supports 12-24V wide voltage DC-In
- Windows 11 LTSC & Ubuntu 24.04 LTS; SUSI API and WISE-DeviceOn
Ordering information:
AIMB-2210R-00A1 | 8845HS
AIMB-2210R-01A1 | 8840U
AIMB-2210R-02A1 | 8645HS
AIMB-2210R-03A1 | 8640U
Technical Data
Manufacturer
Advantech
Product Series
Motherboard
CPU Type
AMD® Ryzen™
CPU
- 7 Pro 8845HS
- 5 Pro 8645HS
- 7 Pro 8840U
- 5 Pro 8640U
Memory
max. 96 GB DDR5
Temperature Range Top
0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
RS232
USB 2.0
DisplayPort
GPIO
Audio
SATA
Watchdog
M.2
2.5 GbE
LVDS/eDP
USB 3.2 Gen2
Power Supply
12 - 24V
Dimensions (LxWxD)
170.0 x 170.0
