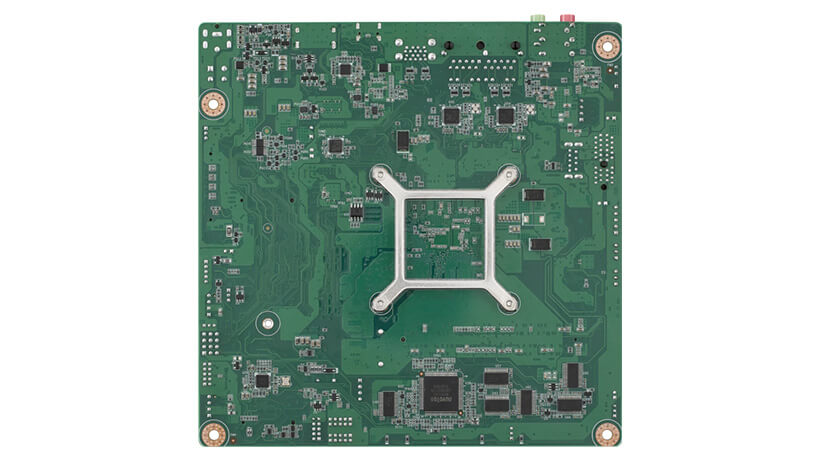

AIMB-219
Mini-ITX | Intel® Core™ and Atom® x7000

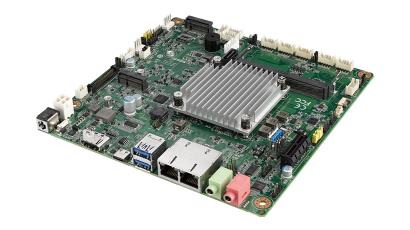

Advantech's AIMB-219 is a Mini-ITX™ Motherboard with Intel® Core™ i3, N series and Atom®
x7000 Series processors that can control up to 3 TFT displays simultaneously.
Features:
- Up to 16GB DDR4 3200MT/s with one SO-DIMM
- Triple independent display with 1 DP, 1 HDMI, 1 LVDS(or eDP)

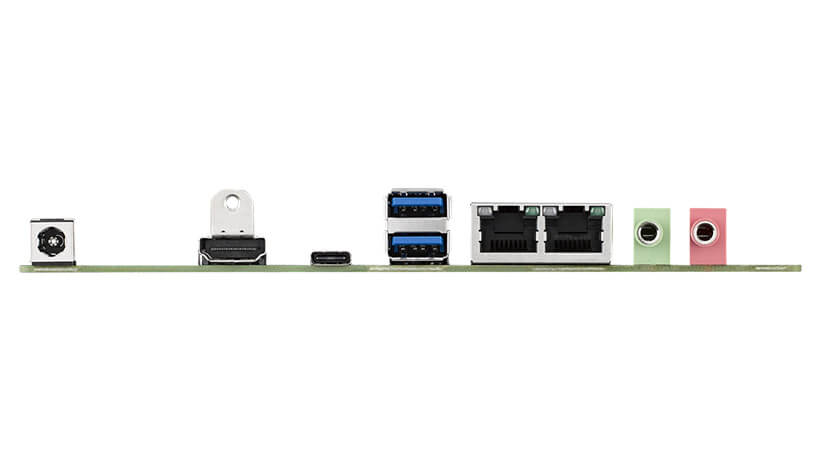

- Abundant I/O expansion: 1 M.2 B-key & 1 M.2 E-key, 3 USB 3.2 Gen2x1, 5 USB 2.0, 1 USB Type-C and 6 COM
- Mini-ITX low profile motherboard, fanless design
- Supports Device-On and Embedded Software APIs
Ordering information:
AIMB-219NC3F-LDA1 | i3-N305
AIMB-219N2F-LDA1| N200
AIMB-219N9F-LDA1 | N97
AIMB-219N5L-LDA1 | N50
AIMB-219M8F-LDA1 | x7835RE
AIMB-219M4F-LDA1 | x7213RE
AIMB-219M6F-LDA1 | x7433RE
AIMB-219Z6F-LDA1 | x7433RE | -20...+70 °C
AIMB-219M2L-LDA1 | x7211RE
Technical Data
Manufacturer
Advantech
Product Series
Motherboard
Product Category
Mini-ITX
CPU Type
- Intel® Core™ i
- Intel® Atom®
CPU
- i3-N305
- N97
- N200
- X7211RE
- X7433RE
- X7835RE
- X7213RE
- N50
Memory
max. 16GB DDR4
Temperature Range Top
- -20...+70°C
- 0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
eDP
LVDS
HDMI
Ethernet RJ45
USB 2.0
DisplayPort
GPIO
Audio
COM
SATA
M.2
2.5 GbE
USB 3.2 Gen2
Power Supply
12 V
Dimensions (LxWxD)
170 x 170
