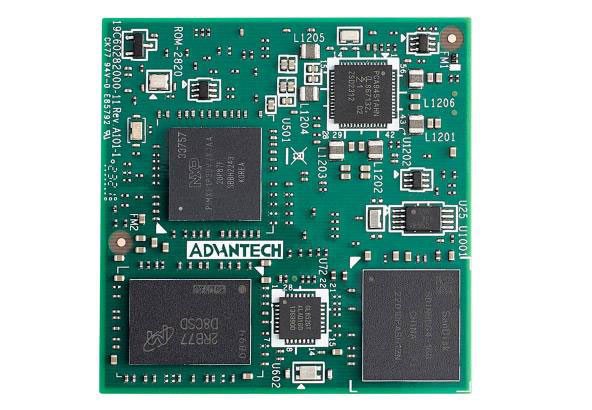

AOM-2521

The AOM-2521 is an Open Standard Module by Advantech with NXP Arm® Cortex®-A55 i.MX95 processor wirth 6 Cores and up to 2.0 GHz

Features:

• 1 x Arm Cortex-M7 core & 1 x Cortex-M33 core
• Onboard LPDDR5 8 GB, 6400MT/s memory
• Neural network accelerator built-in
• 1 x 4 lane MIPI-DSI, 2 x single channel LVDS or 1 x dual channel LVDS
• 1 x USB 3.2, 2 x USB 2.0, 5 x UART, 5 x I2C, 7 x GPIO, 3 x PWM, 2 x CAN-FD
• Compact size form factor - OSM size L (45 x 45 mm)
• Support Yocto Linux

Ordering information:

AOM-2521B6-9596NA1 | i.MX 95 Hex Core
