P0840XGF1MA00
Internal SAP ID: TI-01-021

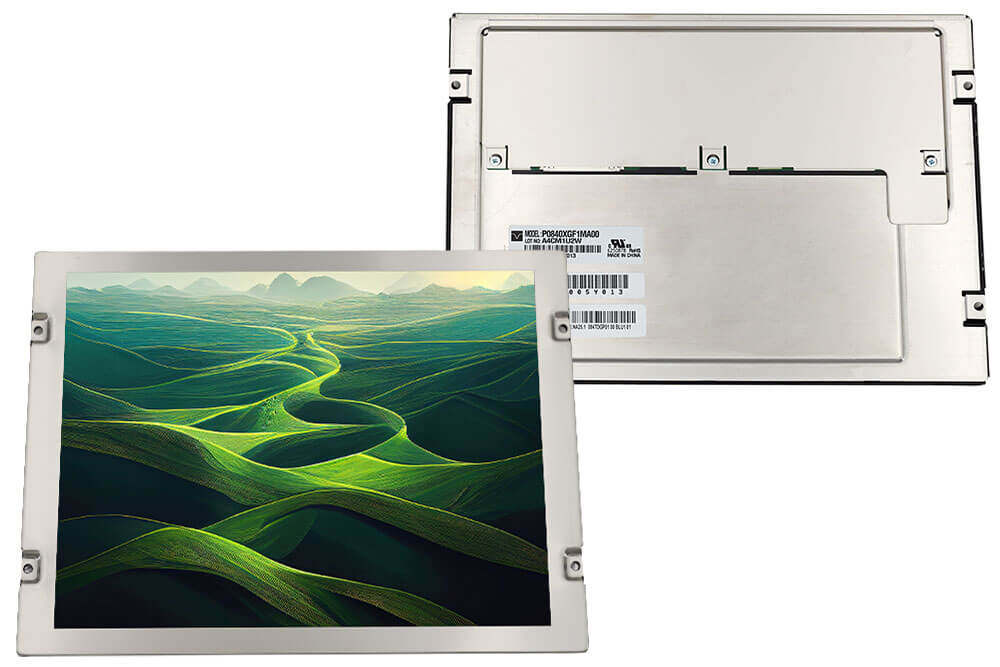

The robust Tianma 8.4" TFT display P0840XGF1MA00 offers high brightness, a wide viewing angle and a wide operating temperature range. The LED backlight life time is 100,000 hours.
Technical Data
Manufacturer
Tianma
Technology
TFT
Product Series
- TFT Displays
- High Brightness TFTs
Size Diagonal
08.4" (21.336 cm)
Resolution (max)
1024x768
Brightness [cd/m2]
1000
Contrast
1000:1
Backlight
LED
Viewing angle U/D/L/R
88/88/88/88
Temperature Range Top
-30...+80°C
Temperature Range Tst
-40...+90°C
Interfaces
LVDS
Dimensions (LxWxD)
199.5 x 149.0 x 9.7 mm
