G215HVN01.4
Internal SAP ID: UP-02-293

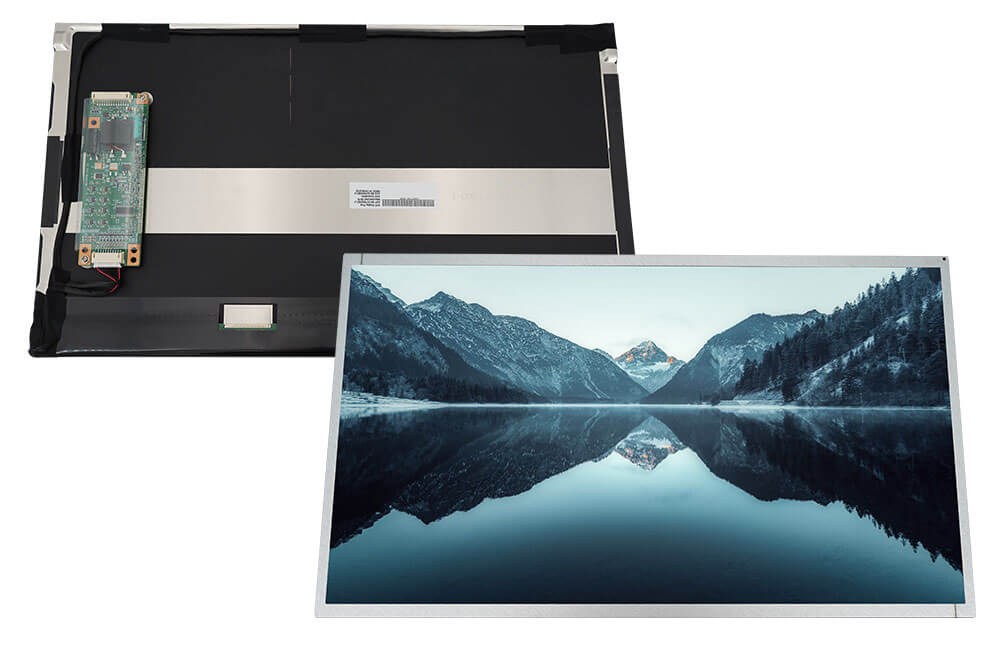

The 21.5" AUO TFT display G215HVN01.4 with Full HD resolution offers very high brightness, a very wide operating temperature range, and a wide viewing angle. This makes it easy to read even in bright ambient light and allows it to be used in protected outdoor areas. The LED converter for the backlight is integrated.
In conjunction with one of our TFT controllers, the IF440 ambient lighth sensor can automatically adjust the brightness to the ambient light for dazzle-free and energy-saving use of the display.
Technical Data
Manufacturer
AUO
Technology
TFT
Product Series
- TFT Displays
- High Brightness TFTs
Size Diagonal
21.5" (54.61 cm)
Resolution (max)
1920x1080
Brightness [cd/m2]
1500
Contrast
5000:1
Backlight
LED
Converter
integriert
Viewing angle U/D/L/R
89/89/89/89
Temperature Range Top
-30...+80°C
Temperature Range Tst
-30...+80°C
Interfaces
LVDS
Format
16:9
Dimensions (LxWxD)
495.6 × 292.2 × 24.05 mm
