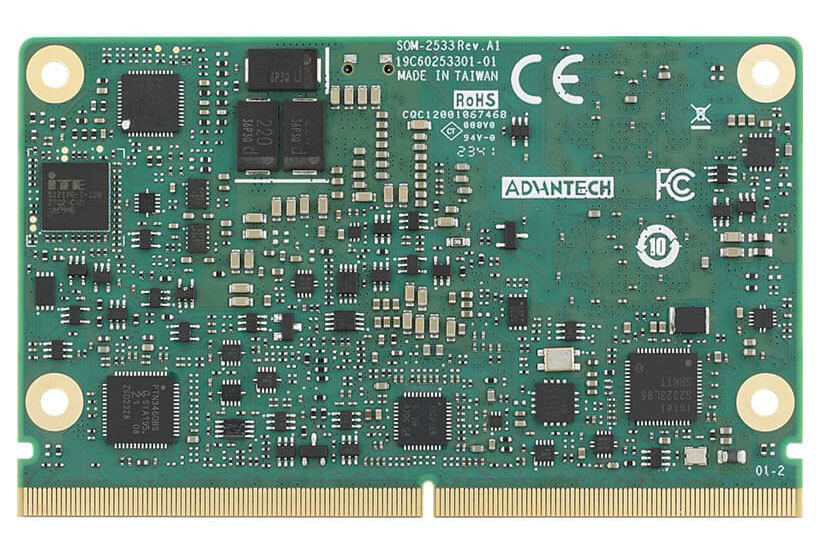

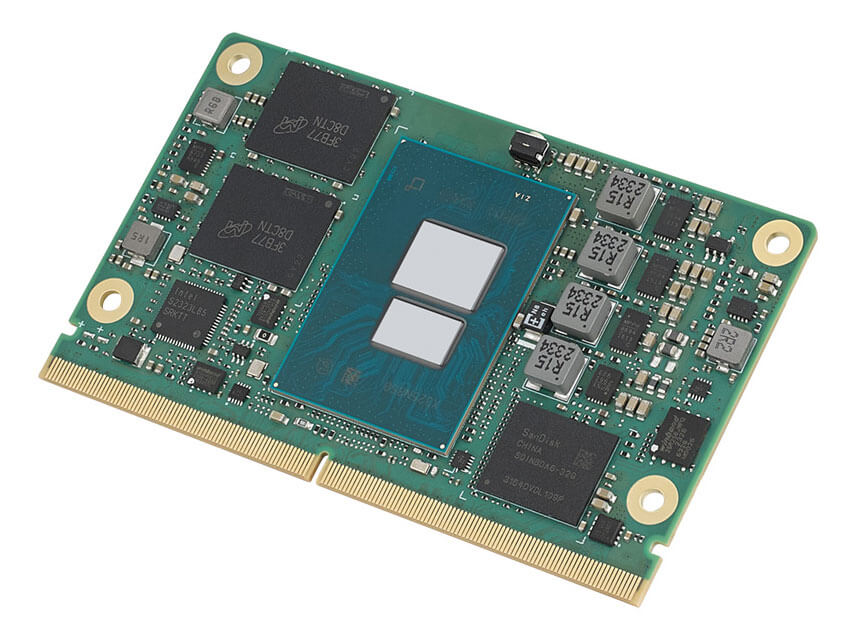

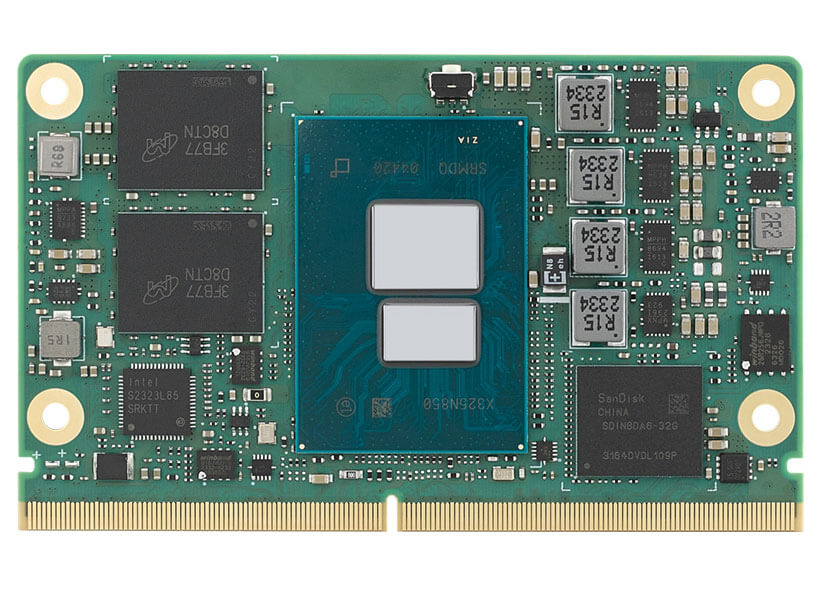

SOM-2533
SMARC™ | Alder Lake-N | Amston Lake
SMARC™ 2.1.1 computer-on-module with Intel® Alder Lake-N or Amston Lake Core-i®, Pentium®, Celeron®, or Atom® x7000 processors. Controls up to 3 independent TFT displays simultaneously.
Features:
- SMARC2.1.1 pinout
- Single-CH LPDDR5 4800MT/s up to 16GB, support IBECC
- Dual 2.5GbE LAN, support Ethernet TSN & Wi-Fi TSN
- Multiple I/O expansion: PCIe gen3, USB3.2 Gen2, SATA, CAN-bus
- On board eMMC up to 64GB (Optional)
- Supports iManager, Embedded Software APIs and Wise-DeviceOn
Ordering information:
SOM-2533DNCC-S8A1 | i3-N305
SOM-2533CCBC-S5A1 | x7425E
SOM-2533CN0C-S8A1 | i3-N305
SOM-2533BN0C-U0A1 | N97
SOM-2533BN0C-S0A1 | N200
SOM-2533AN0C-S0A1 | N50
SOM-2533RDCBX-S3A1 | x7835RE
SOM-2533RCCBX-S5A1 | x7433RE
SOM-2533RBC0X-S0A1 | x7211RE
Technical Data
Manufacturer
Advantech
Product Series
Computer-on-Module
Product Category
SMARC™
CPU Type
- Intel® Core™ i
- Intel® Pentium®
- Intel® Atom®
- Intel® Celeron®
CPU
- i3-N305
- N97
- x7211E
- x7425E
- N200
- X7211RE
- X7433RE
- X7835RE
- N50
Memory
max. 16GB LPDDR5
TPM
fTPM
Temperature Range Top
- -40...+85°C
- 0...+60°C
Temperature Range Tst
-40...+85°C
Interfaces
HDMI
I²C
USB 2.0
DisplayPort
GPIO
Audio
COM
SATA
PCIe
Watchdog
SMBus
eSPI
CAN
2.5 GbE
LVDS/eDP
USB 3.2 Gen2
Dimensions (LxWxD)
82.0 x 50.0 mm
